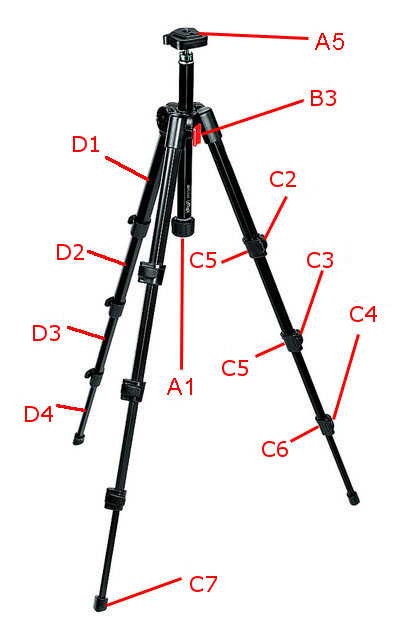

Bogen 715B Version 2 digi-tripod

Made about 2006-01-02
Also known as Manfrotto 715B digi-tripod.

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
These tripods have been discontinued for quite a while. Only the parts we show are available. We have limited quantities and once they sell out we will no longer support this model.


A Center Column Assembly (No Longer Available)
A1 Center Column Lock Plug
A2 Center Column Tube (No Longer Available)
A3 Ball & Tightening Assy (No Longer Available)
A4 Quick Release Receiver (No Longer Available)
A5 Quick Release Plate - Discontinued
B1 Main Top Casting
B2 Main Bottom Casting
B3 Center Column Lock Knob
C1 Upper Leg & Brace (No Longer Available)
C2 Upper Leg Clamp Assy
C3 Middle Leg Clamp Assy
C4 Lower Leg Clamp Assy
C5 Upper & Middle Snap Lock Lever
C5 Lower Snap Lock Lever
C7 Rubber Foot
D1 Top Leg Tube & Brace (No Longer Available)
D2 Upper Leg Tube (No Longer Available)
D3 Lower Leg Tube (No Longer Available)
D4 Bottom Leg Tube (No Longer Available)

Editor note: All versions are interchangeable
Click on the link to see the actual part picture.
