Bogen 714SHB digi-tripod

Made about 2003-12-01
Also known as Manfrotto 714SHB digi-tripod.

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
These tripods have been discontinued for quite a while. Only the parts we show are available. We have limited quantities and once they sell out we will no longer support this model.

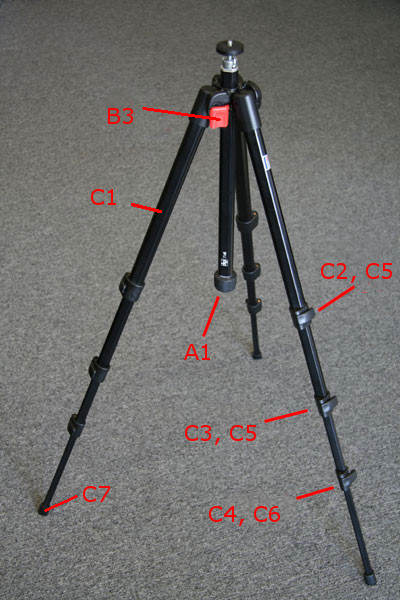

A Center Column Assembly (No Longer Available)
A1 Center Column Lock Plug
A2 Center Column Tube (No Longer Available)
A3 Ball & Tightening Assy (No Longer Available)
A4 Top Plate (No Longer Available)
B1 Main Top Casting
B2 Main Bottom Casting
B3 Center Column Lock Knob
C1 Upper Leg & Brace (No Longer Available)
C2 Upper Leg Clamp Assy
C3 Middle Leg Clamp Assy
C4 Lower Leg Clamp Assy
C5 Upper & Middle Snap Lock Lever
C5 Lower Snap Lock Lever
C7 Rubber Foot
D2 Bottom Leg Tube (No Longer Available)
D3 Lower Leg Tube (No Longer Available)
D4 Upper Leg Tube (No Longer Available)

Editor note: All versions are interchangeable
Click on the link to see the actual part picture.
