3433 VERSION 2 - Video Pan Head
Made about 2005-02-14
For Serial Number C0001300
Also called Manfrotto 501
` USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
Standard Quick Release Plate
A1 3433PL Quick Release Plate
A2 3433PL Rubber Pads (set of 2)
A3 1/4 QR Replacment Screw
A4 3/8 QR Replacement Screw
A5 Rubber Stopper
A6 Anti-Rotation Pin
Quick Release Variations
500PLONG QR Plate
3433PL QR Plate
501PLONG QR Plate
509PLONG QR Plate

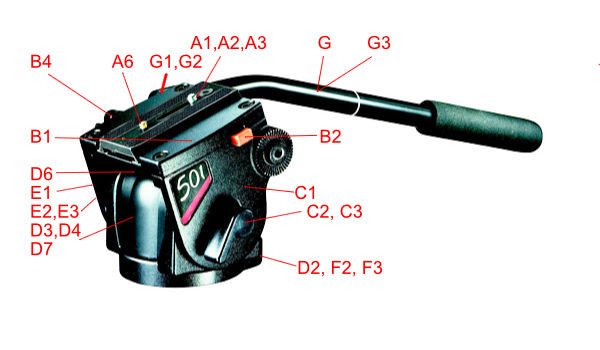

Head Parts
B1 Top Plate
B2 QR Safety Lock Button
B3 QR Lock Wedge
B4 QR Plate Lock Knob
C1 Side Plate (not a stock item)
C2 Tilt Lock Knob
C3 Tilt Friction Disk
D1 Main Housing (not a stock item)
D2 Bubble Level
D3 Main Bearing Stack (not a stock item)
D4 Main Pivot Spring (not a stock item)
D5 Main Baffle (not a stock item)
D6 Main Tension Knob
D7 Cover Plate (not a stock item)
E1 Side Plate Tension Side
E2 Tension Knob
E3 Side Friction Disk
F1 Base Plate (not a stock item)
F2 Pan Friction Disk
F3 Pan Lock Knob
F4 Pan Lock Assy
G Pan Handle Assembly
G1 Pan Handle Clamp Knob
G1a Clamp Knob Retaining Washer
G2 Pan Handle Clamp
G3 Pan Handle Only
H Fluid Grease Jar
Editor note: Click on the link to see the actual part picture.
