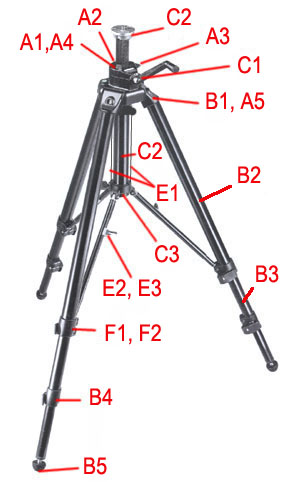

3236 Version 6 - Black Aluminum Tripod

A1 USED Main Casting Top Plate
A2 USED Main Casting Bottom Plate
A3 USED Casting Lock Knob
A4 Bubble Level
A5 USED Leg Tensioner

B1 USED Leg Brace
B2 USED Upper Leg
B3 USED Middle Leg
B4 USED Lower Leg
B5 Rubber Foot

C1 Elevation Crank
C1 USED Elevation Crank
C2 Elevation Gear
C2 USED Elevation Gear
C3 Round Center Column
3236 V1,2,3 3236 old style use round center column that is 30mm dia and 4 teeth per 10mm length
C4 Center Column Plug
C5 Center Column Tubing

E1 USED Center Column Rod
E2 USED Spider Tension Knob
E3 Spider Strut Assy

F1 USED Double Spiral Upper Leg Lock
F2 USED Upper Leg Lock Snap Lever (not longer avaiable)

Editor note:Check the inside of the leg lock flip lever. Earlier versions have a single spriral and later versions will have a double Spiral, as shown.

G1 USED Double Spiral Lower Leg Lock
G2 USED Lower Leg Lock Snap Lever (not longer avaiable)



Editor note: Not all parts are interchangeable between versions. Center Columns, Elevation cranks and gears and main castings are not interchangeable between versions. You can completely replace the leg lock assembly on version 4 with the version 3 leg locks. The snap lock levers are NOT interchangeable.
Click on the link to see the actual part picture. 3036 ver 5 and 3236 ver 5 can use parts interchangably.

See 3236 ver 6
Manufacturers Parts List
