3192 Version 5 Video Tripod

Made after 2005-05-10
For serial number from A0183287 if marked
Also called 350B

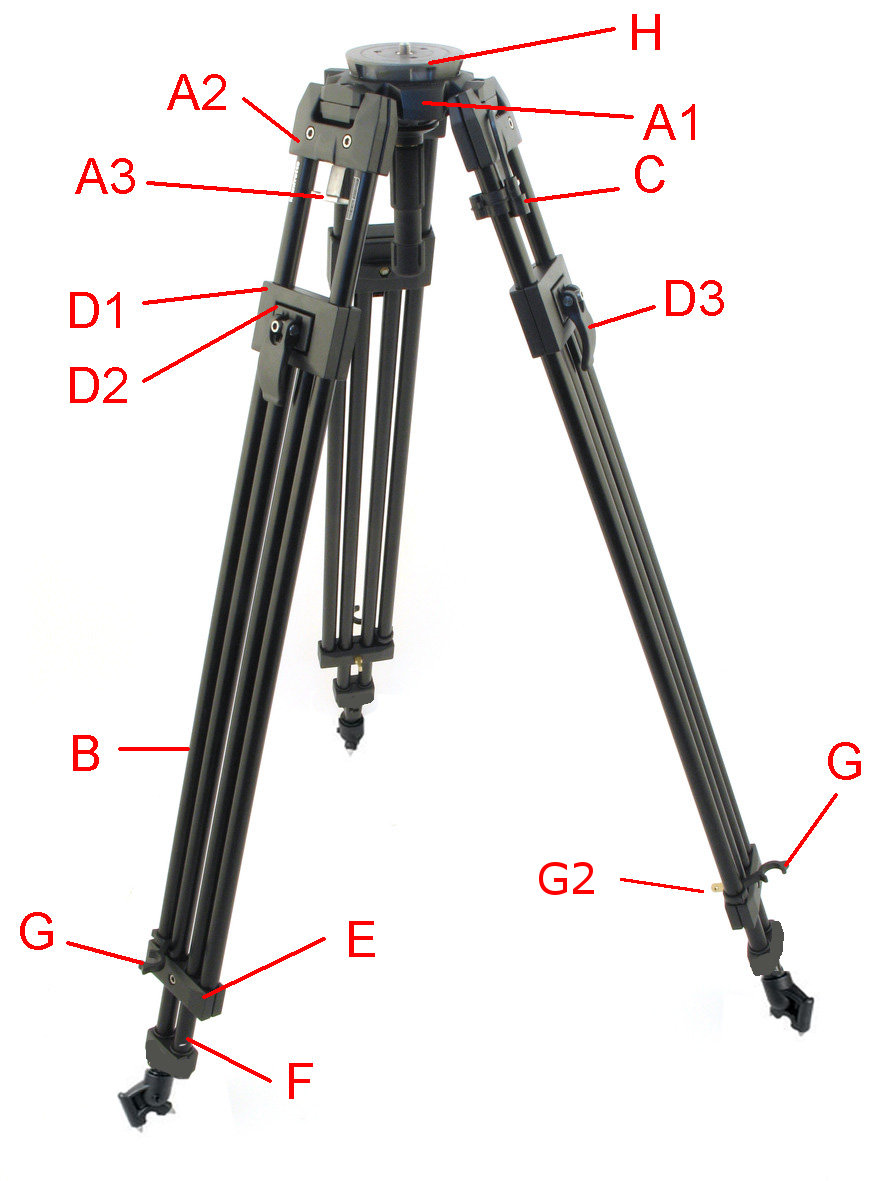

3192-5 TRIPOD
A1 Main Casting Top Plate
A2 Leg Brace Assembly
A3 Leg Release
A4 Leg Pivot Replacement Part

B Upper Leg

C Cable Clip & Wrench

D1 Sliding Clamp Assembly
D2 Clamping Shoe Only
D3 Clamp Lever

E Leg Yoke

F Lower Leg Tube

G Leg Clip
G2 Midlevel Spreader Assmbly

H Ball Assembly 100mm
Click Here for parts for 500Ball

I Foot Assembly
I2 Spike (not shown)
I3 Rubber Foot (not shown)



Editor note: Click on the link to see the actual part picture.
