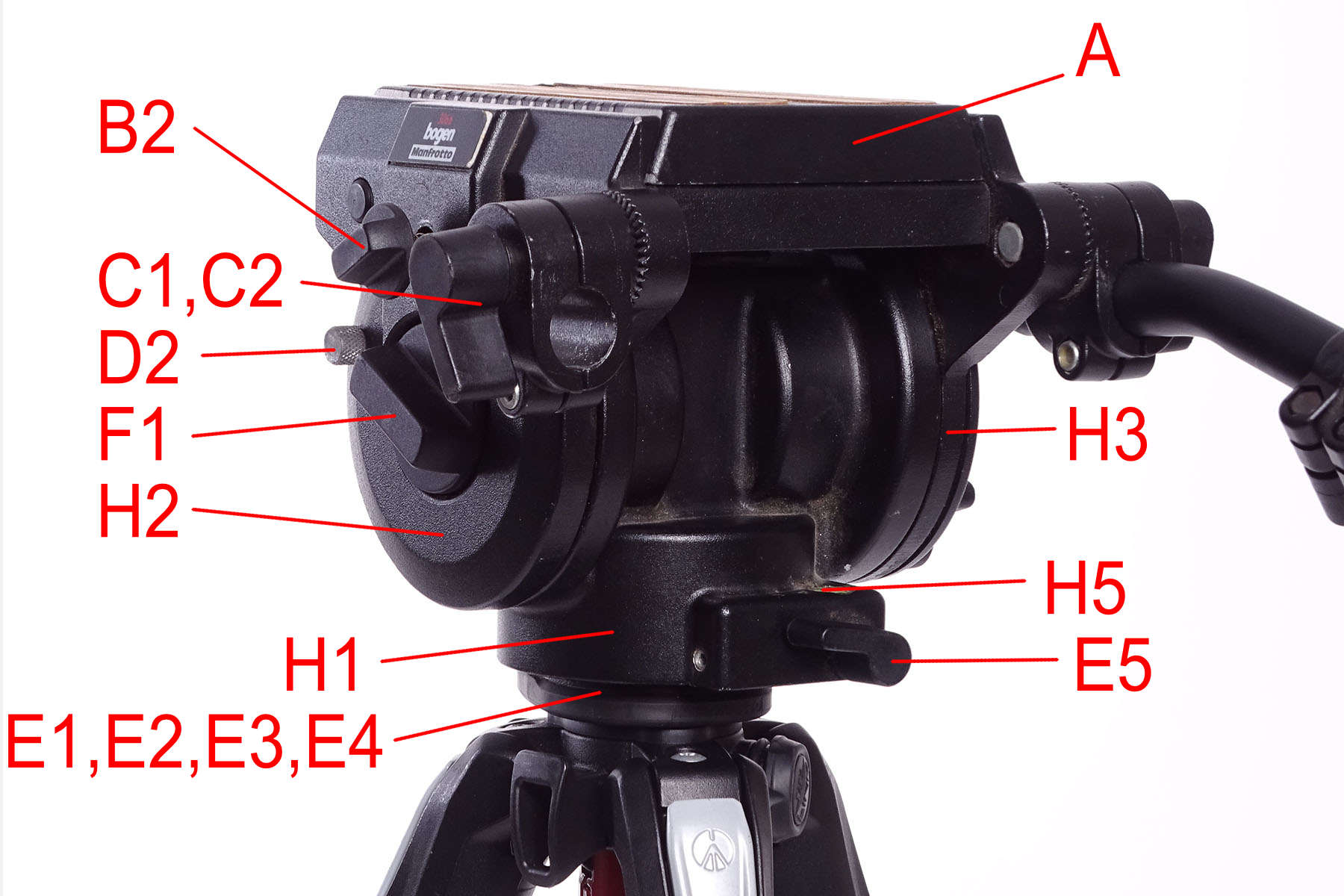

Bogen 3066 Version 8 Video Head
Also called Manfrotto 116MK3
USED parts are marked as USED, parts not marked as USED are new.
A Quick Release Plate
A1 3/8-16 Screw (set of 2)
A2 1/4-20 Screw (set of 2)
B1 Top Plate
B2 Quick Release Lock Knob
C1 Pan Handle Clamp Lock Knob
C2 Pan Handle Clamp
D1 Knob
E1 USED Pan Collar
E2 USED Main Spindle Assy
E3 USED Bearing Stack
E4 USED Tension Knob
F1 USED Main Housing
F2 USED Retaining Screw
G Extension Pan Handle Assy
G USED Extension Pan Handle Assy
G1 Pan Handle Extension Bar
G2 Pan Handle Clamp
G3 Pan Handle
G4 USED Repl Pan Clamp Knob
H1 Main Housing
H2 USED Left Side Assembly
H3 USED Right Side Assembly
H4 USED Right Side Bezel
H5 Bubble Level
H6 Tension Control
Editor note: There are older Versions for which we do not have parts lists. Versions 7 & 8 are interchangeable and the main differences that more parts were added to the verson 8 list. 3066 is the 3066 - which is not to be confused with the 116MK2. Click on the link to see the actual part picture.
