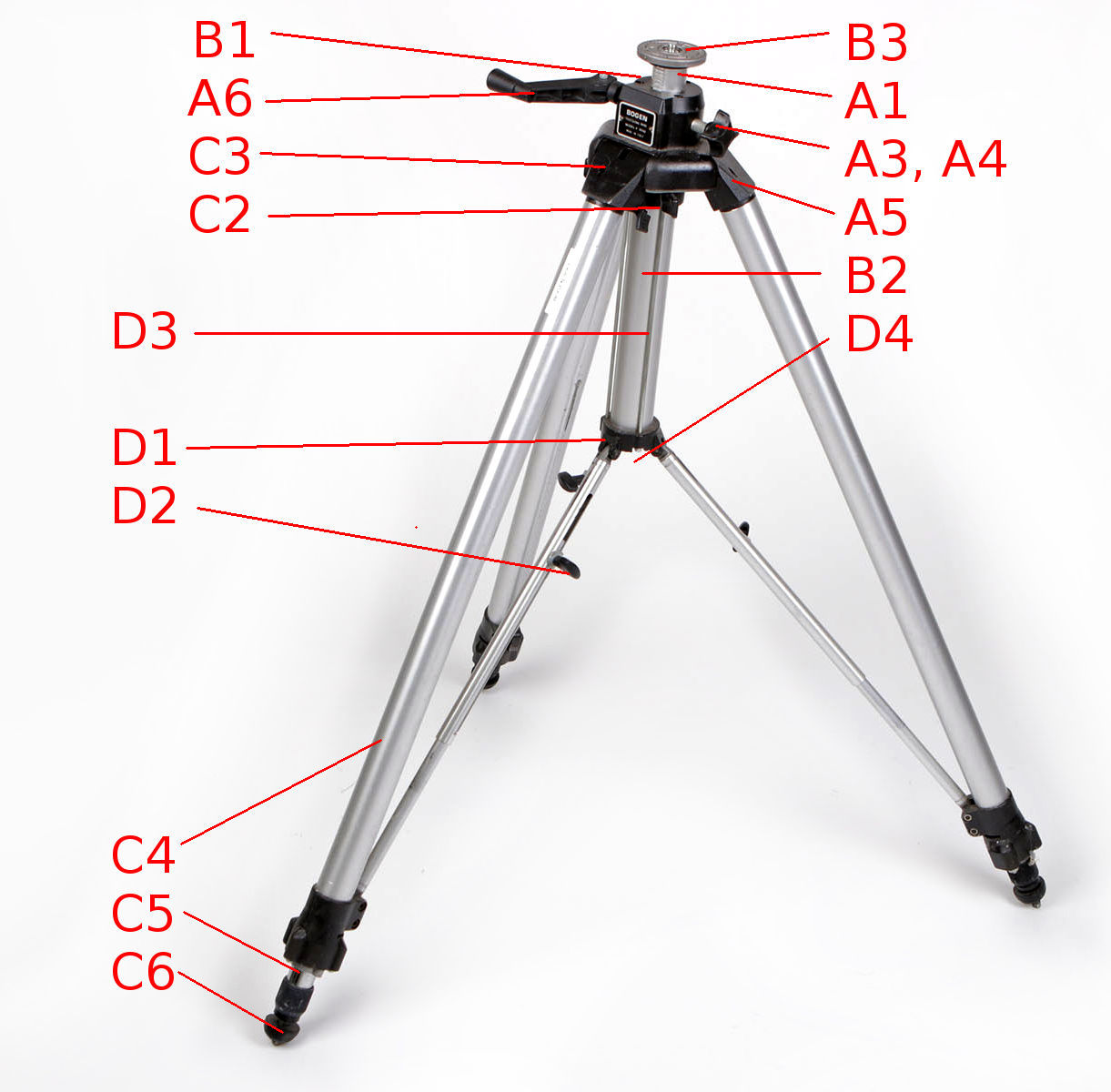

Bogen 3051 version 6

A1 USED Main Casting Top Plate
A1 Main Casting Top Plate
A2 USED Main Casting
A3 Center Column Lock Knob
A3 USED Center Column Lock Knob
A4 Bubble Level
A5 USED Leg Tensioner
A6 Elevation Crank
A6 USED Elevation Crank
A7 Elevation Gear
A7 USED Elevation Gear
A8 Center Column Guide Shims

B1 USED 6 Sided Center Column
B1 6 Sided Center Column
B2 USED Center Column Cap
B2 Center Column Cap
B3 Center Column Grub Screw
B3 Center Column Grub Screw - 5 Pack

C1 USED Leg Rapid Release Collar
C1 Leg Rapid Release Collar
C2 Leg Rapid Release Lever
C3 USED Leg Brace
C4 USED Upper Leg Assembly
C4A Spike Foot (Not Shown)
* Some versions have Only the middle leg tube ending in a spkie foot, while others have a 3rd lower leg section that uses the foot listed below.

C5 USED Lower Leg Assembly
C6 Lower Leg Spike Foot
C6 USED Lower Leg Spike Foot

D1 USED Spider Assembly
D2 Spider Lock Knob
D2 USED Spider Lock Knob
D3 Center Column Rod
D3 USED Center Column Rod
D4 USED Center Column Cover


Editors Notes: Version 6 & 7 of this model are listed together as there were no changes made to the version 7 diagram.
Earlier models have the round center column, all part A & B, which version is not compatible with this or models that have the 6 sided center column. Some versions did not have the 3rd leg section. Only the upper and middle, which took it's own spkie foot, which is not compatible with the 3rd leg section when purchsed, as it was an accessory, Parts C5 & C6. See other versions 3051 ver 4 and 3051 ver 5
