Bogen 3047 Version 1
3 way pan head with hexagonal style Quick release.
Made before 1998-06-04
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
A1 Quick Release Plate with 1/4-20 Screw
A2 Quick Release Plate with 3/8 Screw
A3 Non Rotate QR Plate with 1/4-20 Screw
A4 VHS Quick Release Plate with 1/4 Screw
A5 1/4 QR Thumbscrew
A6 3/8 QR Thumbscrew
A7 Flat Bottom Plate with 1/4 Screw
A8 Flat Bottom Plate with 3/8 Screw
A9 1/4 Low Profile QR Screw
B1 Locking Cam (not available)
B2 Return Spring (not available)
B3 Pivot Screw (not available)
B4 Locking Knob (not available)
C1 USED Short Handle
C2 USED Middle Handle
C3 USED Long Handle
C4 Replacement Handle Set
D QR Receiver Assembly
D1 Small Bubble Level
E Tilt Casting (not available)
F Main Casting (not available)
G Tripod Base Plate
Editor note: This is Version 1. This is the earliest model we know of and many of the parts are not available because of the age. Please check parts carefully for match before ordering.
Few, if any, of the later Version parts will work with this model.
The bubble level D2 is a replacement for the glass vial Only. On Ver 1 these are held in by sheet metal and rivits and are very hard to replace without damage.

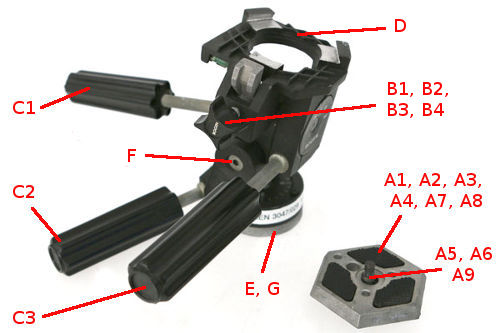

Click on the numbered link to see the actual part picture.
