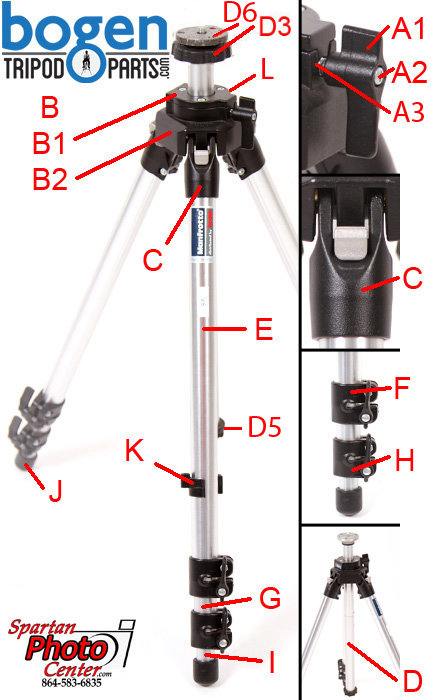

Bogen 3021 Version 7
Also called Manfrotto 055C
Made after 02-09-1999
This style was any 3021 made in black tubes, or 3021 made silver with tubes.
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new.
A1 USED Center Column Lock Knob
A2 Used Center Column Shaft - Included in part A1
A3 USED Center Column Brake Shoe
B USED Main Casting Assembly
B1 USED Main Casting Housing (not available separately)
B2 USED Main Casting Top Plate
B2b USED Top Plate Screws
B3 USED Leg Stopper
B4 Screw-in Strap Lanyard Stud
C Leg Brace Assembly
C USED Leg Brace Assembly
D USED Long Silver Center Column
D1, D2, D3 are not parts for this tripod
D5 Center Column Rubber Cap
D5 USED Center Column Rubber Cap
D6 Top Plate for Extendable Center Column
D6A Center Column Grub Screw
D6A Center Column Grub Screw - 5 Pack
D7 Center Column Rubber Cushion - 2 pack
E USED Silver Upper Leg Tube
F USED Upper Leg Lock with Metal Levers
F USED Upper Leg Lock with Plastic Levers
F1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
F2 Nut Caps (set of 5)
G USED Silver Middle Leg Tube
H USED Lower Leg Lock with Metal Levers
H USED Lower Leg Lock with Plastic Levers
H1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
H2 Nut Caps (set of 5)
I USED Silver Bottom Leg Tube
J1 Rubber Feet (set of 3)
J2 Spike Feet Set (set of 3)
J2 Suction Cup Feet (set of 3)
K Cable Clip & Plastic Wrench
L Strap Lanyard
L Strap with Lanyard
Editors Notes: The main casting parts (parts B) and leg braces (parts C) are NOT interchangeable with earlier models. Parts F and H are Double Spral Leg Flippers. The Leg Lock Flip Levers are the Double Spiral type and are not interchangeable with the later Single Spiral type. Click Here for more details.
