Bogen 3001D with Long Center Column
This tripod has several NON-interchangeable variations.
The parts are not always interchangable between models. Parts list are shown with each variation below. Check the parts lists, diagrams and parts pictures carefully to ensure you get the correct part.
Bogen 3001D version 1 with Long Center Column
Bogen 3001D parts. This is the 3001D made in silver color.
Made about 1997-01-20. All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new.
A1 USED Center Column
A2 Center Column Cap
A2 Center Column Cap 5 Pack
A3 Grub Screw
A3 Grub Screw - 5 Pack
B1 USED Upper Main Casting
B2 USED Lower Main Casting
B3 USED Column Locking Shoe & Spring
B4 USED Center Column Lock Knob
C1 USED Leg Brace
C2 USED Leg Release Button
D USED Upper Leg Tube
D1 Padded Leg Tube Cushion
E1 USED Upper Leg Clamp Assembly
E2 Replacement Leg Lock Knob (deep throat)
E2 Leg Lock Screw (deep throat)
E3 Leg Lock Cap Screw
E4 Leg Lock Hex Nut
F USED Middle Leg Tube
G1 USED Lower Leg Clamp Assembly
G2 Replacement Leg Lock Knob (deep throat)
G2 Leg Lock Screw (deep throat)
G3 Leg Lock Cap Screw
G4 Leg Lock Hex Nut
H USED Bottom Leg Tube
I1 Rubber Foot
I2 Retractable Spike Foot
Bogen 381 Leg Wrap
Editors Notes: The main casting parts and leg braces ARE interchangeable with 3001 Version 2, 3 and LC.

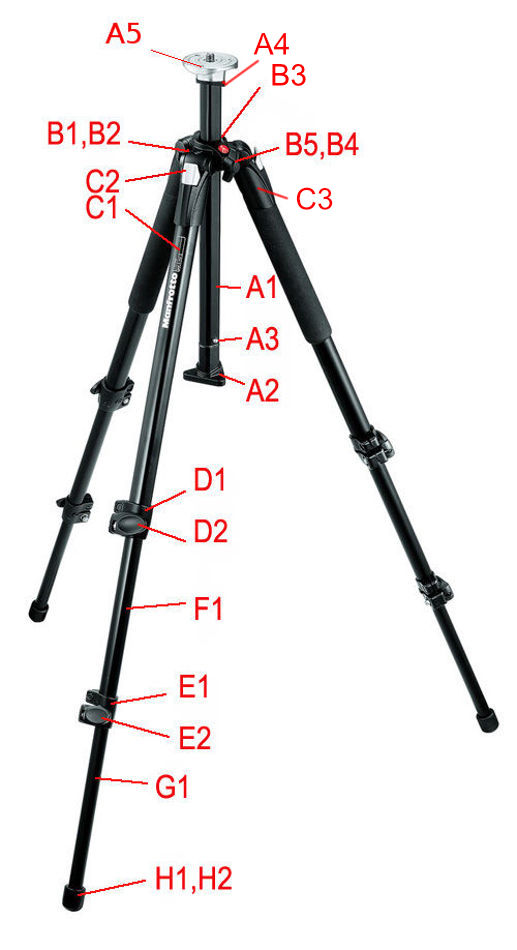

3001D Version 2- Aluminum Tripod
Made after 2004-04-21
This version has different parts from the 190, 190x and Mt190 series tripods.
A1 USED Center Column
A2 Center Column Plug (not a stock item)
A3 USED Center Column Spring
A4 Rubber Bumper
A5 Grub Screw Single
A5 Grub Screw 5 Pack
3 grub screws required
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop
B4 USED Lock Shoe
B5 USED Lock Knob
B5 Substitute Lock Knob
C1 Upper Leg Tube
C2 Leg Release Button
C2 USED Leg Release Button
C3 Leg Brace
C3 USED Leg Brace
D1 Remanufactuered Upper Leg Clamp
D2 Remanufactuered Snap lever
D2 Original Snap lever
E1 Remanufactuered Lower Leg Clamp
E2 Remanufactuered Snap lever
E2 Original Snap lever
F1 Middle Leg Tube
G1 Lower Leg Tube
H1 Rubber Foot
H1 Spike Foot
Editor note: All parts are interchangeable between versions 3 & 4 EXCEPT the Leg Clamps and snap levers. Those on version 3 use different snap levers than on version 4. You can completely replace the Leg Clamp assembly on version 4 with the version 3 Leg Clamps. The snap lock levers are NOT interchangeable.
Click on the numbered link to see the actual part picture.
3001D Version 3 -Aluminum Tripod
Made after 2004-09-02
For serial number from A0001098
This version has different parts from the 190, 190x and MT190 series tripods.A1 USED Center Column
A2 Center Column Plug (not a stock item)
A3 USED Center Column Spring
A4 Rubber Bumber
A5 Grub Screw Single
A5 Grub Screw 5 Pack
3 grub screws required
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop
B4 USED Lock Shoe
B5 USED Lock Knob
B5 Substitute Lock Knob
C1 Upper Leg Tube
C1 USED Upper Leg Tube
C2 Leg Release Button
C2 USED Leg Release Button
C3 Leg Brace (not a stock item)
D1 USED Upper Leg Clamp
D2 Repl Snap Lever
D3 Clamp Screw
D4 T25 Wrench
E1 Lower Leg Clamp
E2 Repl Snap lever
E2 Repl Snap lever
E3 Clamp Screw
F1 Black Middle Leg Tube
G1 Lower Leg Tube
H1 USED Rubber Foot
Editor note: All parts are interchangeable between versions 2 & 3 EXCEPT the Leg Clamps and snap levers. Those on version 2 use different snap levers than on version 3. You can completely replace the Leg Clamp assembly on version 2 with the version 3 Leg Clamps. The snap lock levers are NOT interchangeable. Parts marked as USED are reconditioned and Only available as USED.
Click on the numbered link to see the actual part picture.
