Bogen 3001BN Version 2 - Black Aluminum Tripod

Made after 2004-04-21
Also Called Manfrotto 190DB

This version has different parts from the 055 and 190 Series Tripods
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

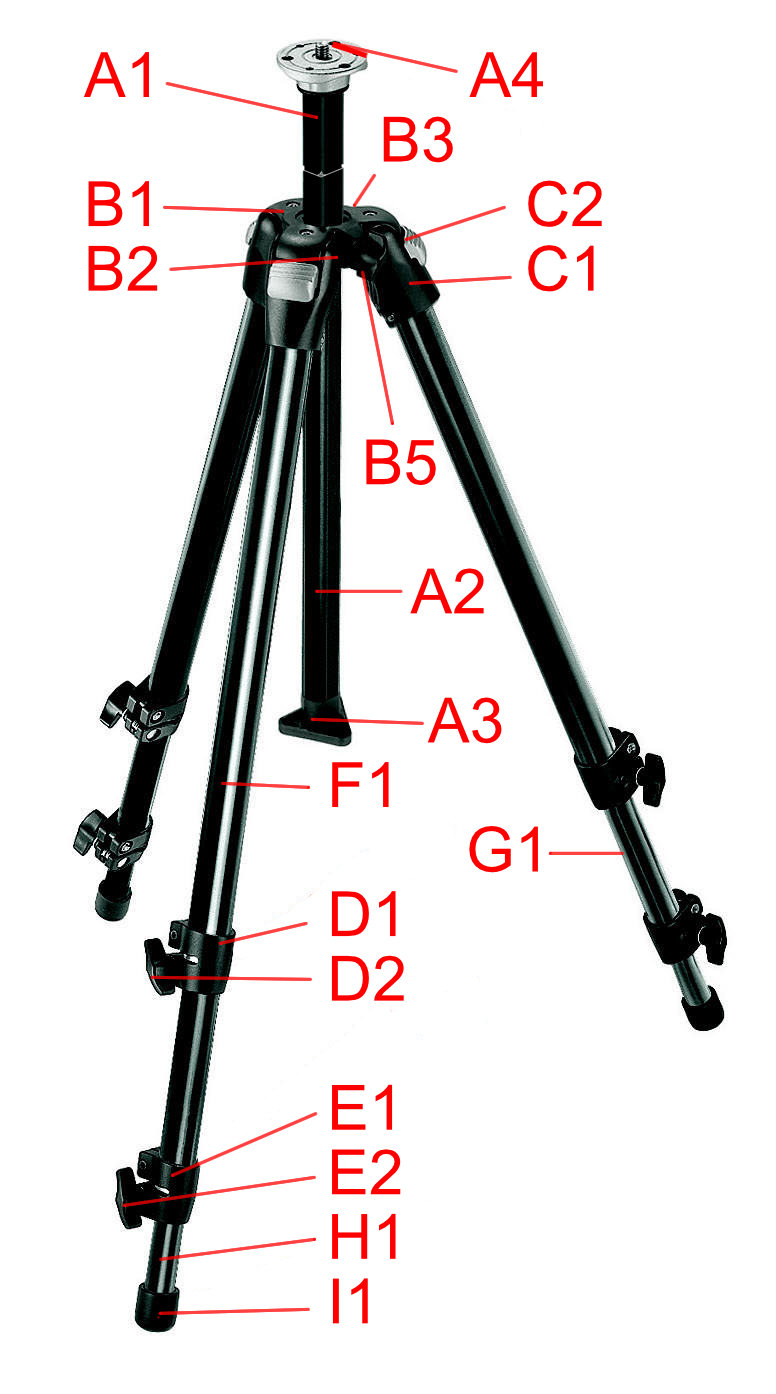

A1 USED Center Column
A2 Not a Part
A3 USED Center Column Plug
A4 Grub Screw Single
A4 Grub Screw 5 Pack
3 grub screws required

B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop

B4 USED Center Column Locking Shoe
B5 USED Lock Knob

C1 Leg Brace
C1 USED Leg Brace
C2 Leg Release Button
C2 USED Leg Release Button

D1 Upper Leg Clamp
D1 USED Upper Leg Clamp
D2 Leg Clamp Lock Knob

E1 Lower Leg Clamp
E1 USED Leg Clamp
E2 USED Leg Clamp Lock Knob

F1 USED Upper Leg Tube

G1 USED Middle Tube

H1 Lower Leg Tube
I1 Rubber Foot
(standard on this tripod)
Editor note: All parts are interchangeable between versions 2 & 3 EXCEPT the Leg Clamps and Leg Tubes. Those on version 3 use different knobs than on version 2. You can completely replace the Leg Clamp assembly on version 3 with the version 2 Leg Clamps. The clamp knobs are NOT interchangeable.


Click on the numbered link to see the actual part picture.
