3001 Version 1-Aluminum Tripod
Also called Manfrotto 190
Made before 1993-04-29
This Version has different parts from other 3001 and 3011 series tripods. Version 1 has narrow leg release button (part C2) on the leg brace.
Leg braces are not interchangeable between Versions.All parts are interchangeable between Versions 3 & 4 EXCEPT the leg brace (C1) and leg release buttons (C2). The leg release buttons and braces are NOT interchangeable.
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

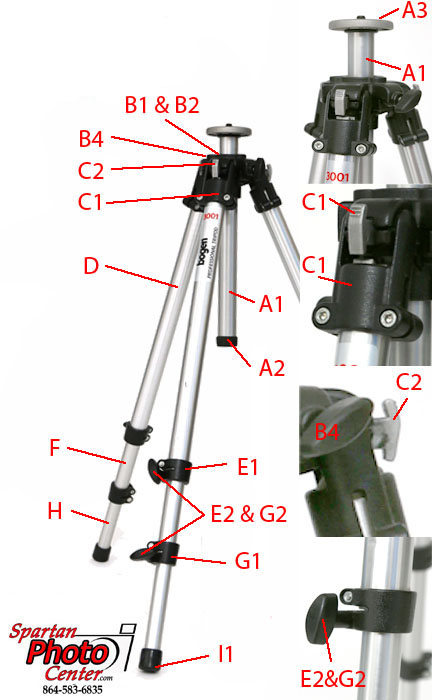

A1 USED Center Column
A2 Center Column Cap Single
A2 Center Column Cap -5 Pack
A3 Grub Screw Single
A3 Grub Screw 5 Pack
3 grub screws required
B1 USED Upper Main Casting
B2 USED Lower Main Casting
B3 USED Column Locking Shoe & Spring
B4 USED Center Column Lock Knob
C1 USED Leg Brace
C2 USED Narrow Leg Release Button
D USED Upper Leg Tube
D1 Padded Leg Tube Cushion
E1 USED Upper Leg Clamp Assembly
E2 Replacement Leg Lock Knob (deep throat)
E2 Leg Lock Knob (deep throat)
E3 Leg Lock Cap Screw
E4 Leg Lock Hex Nut
F USED Middle Leg Tube
G1 USED Lower Leg Clamp Assembly
G2 USED Leg Lock Knob (deep throat)
G2 Leg Lock Knob (deep throat)
G3 Leg Lock Cap Screw
G4 Leg Lock Hex Nut
H Bottom Leg Tube
H USED Bottom Leg Tube
I1 Rubber Foot
I2 Retracable spike Feet Set
Bogen 381 Leg Wrap
Editor note: All versions are interchangeable
Click on the link to see the actual part picture.
